MIOS Max Locking Modules

ANVISA Registration: 80455630095

Minimally Invasive Orthognathic Surgery has become an innovative approach to correcting facial asymmetries. To improve the technique, Traumec has developed two fixation systems:

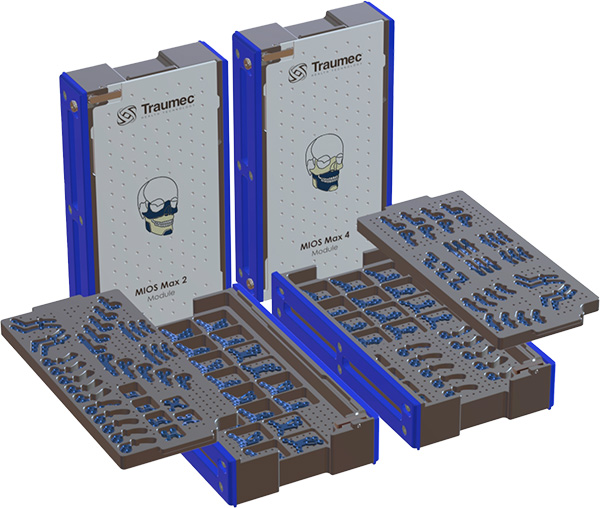

LOCKING MIOS MAX SYSTEM 2
LOCKING MIOS MAX SYSTEM 4

Catalog

FEATURES AND BENEFITS

Screws in self-tapping and self-drilling options, manufactured in ASTM F-136 Titanium (TI 6AL 4V ELI) with proven efficiency in penetration and mechanical resistance, providing safety and speed in the surgical procedure;
Plates manufactured in ASTM F-67 Titanium (Grade 2 pure TI);
High resistance plates with reduced and exclusive designs (developed by specialists in the MIOS technique);
Reduced surgery time;
Reduced hospital stay;
Reduced edemas;
Reduced blood loss;
Faster and more satisfactory postoperative recovery.
Smaller incisions;
Less displacement.

MIOS MAX 2

Developed for techniques using two plates in the maxilla;
Chin plates for mentum 1.0mm with recess and wider base for better fixation stability;

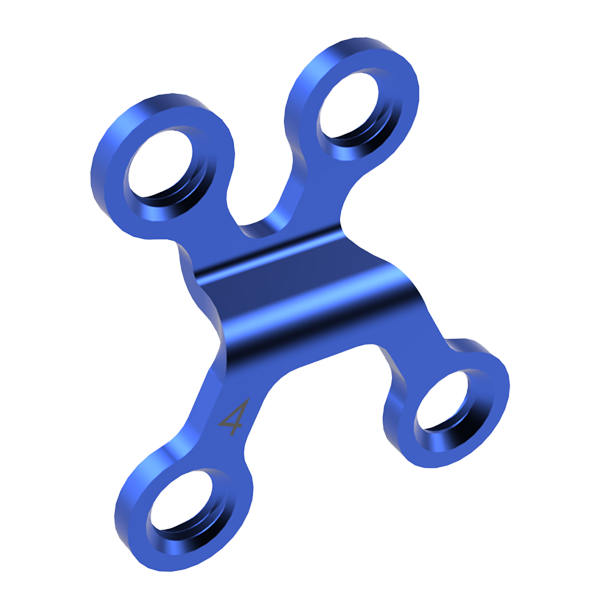

Lefort plates with 0.8mm thickness and oblong shape, facilitating modeling and bone adaptation with advancement and setback possibilities of -2mm for the maxilla;
Mandibular plates 1.0 mm with bridges and cavities allowing a 30° angulation.

INSTRUCTIONS FOR USE

MIOS MAX 4

Developed for techniques using four plates in the maxilla;
Lefort plates with medial reinforcement;
Angled mandibular plates with bridge;
Premolded zygomatic pillar plates with a thickness of 0.8 mm;
“Z” and “S” plates with a thickness of 1.0 mm;
Lockfix Mandibular Plate - 30° angle with slight inclination in the posterior holes to facilitate intraoral screw insertion;
Mentum plates with a thickness of 0.8 mm and advancement from 2 to 8 mm;
